SoilWise Geopackage

Soil Plot Form

Open

To open the Soil Plot custom forms, go to the Layers panel, right‑click the soilplot layer, and choose Open Attribute Table from the context menu.

Tip

For further information on the custom forms, consult the documents Customized Attribute Forms in QGIS and Navigating GeoPackage Tables via Forms

Edit

The “Soil Plot” it’s a point-based geographic entity. The first step To create a new Soil Plot feature is to define its geometry.

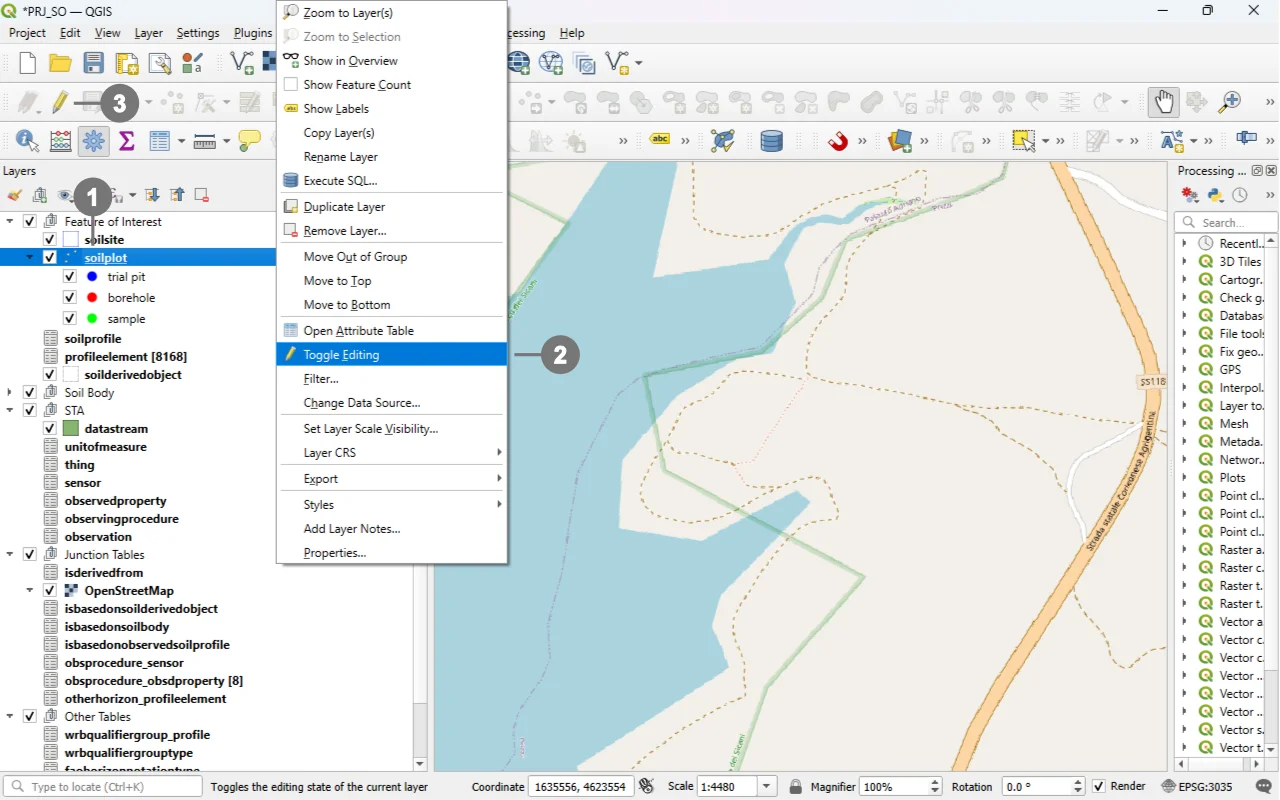

Fig.1 Right-click in the "Layers" panel on the "soilsite", ① and from the menu, select "Toggle Editing" ②.

It is also possible to select only the "Soil Site" layer ① and click the "Toggle Editing", ③ button in the toolbar.

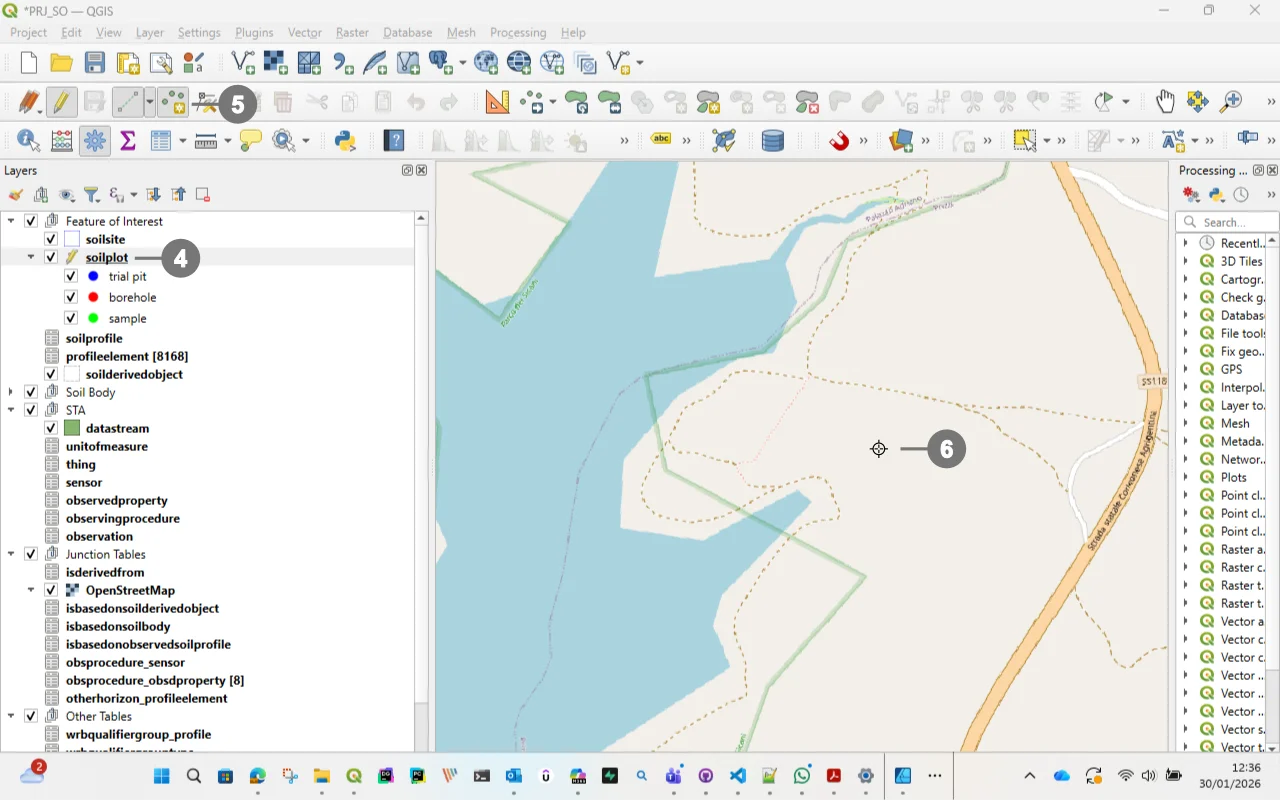

Fig.1 A small pencil icon ④ will appear, indicating that the feature is in edit mode.

In the toolbar, select the "Add Point Feature" icon ⑤.

To add a new point, **click directly on the map** ⑥. A marker will be created at the exact location where you click

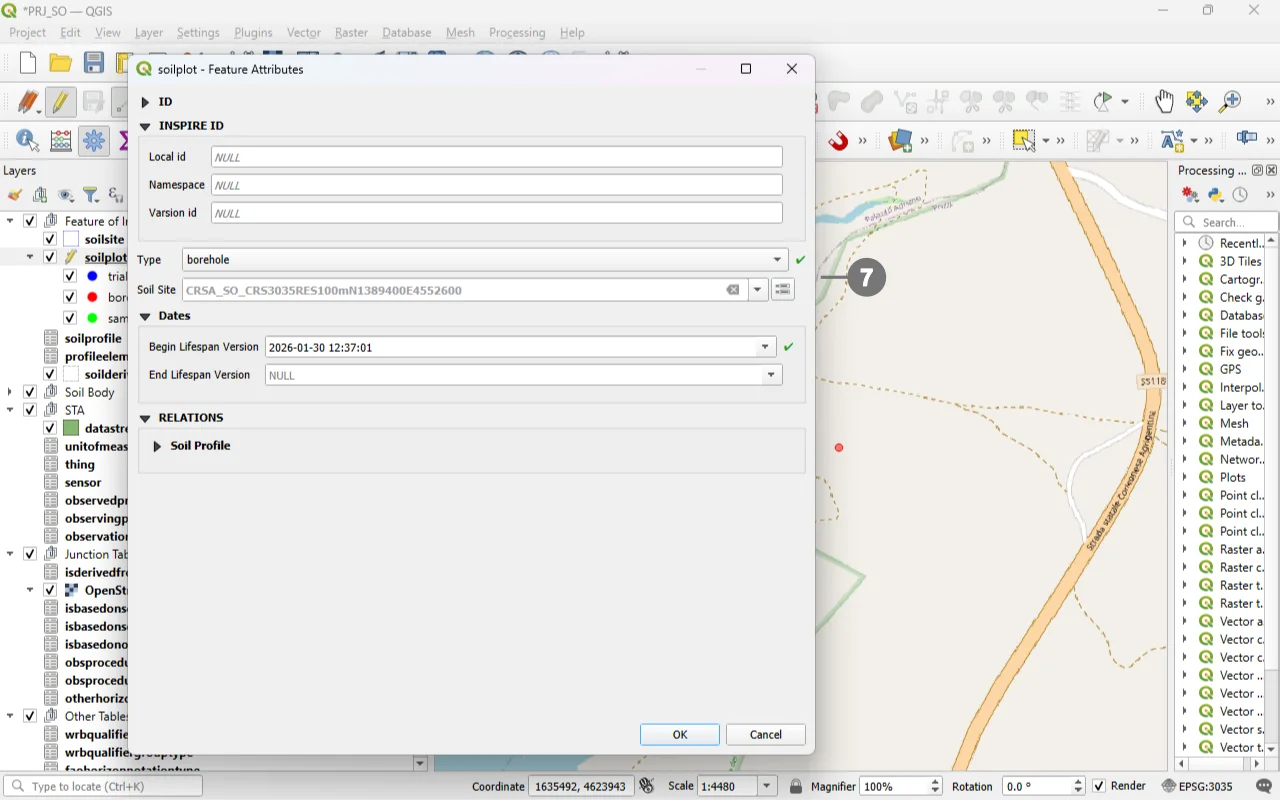

Fig.1 As soon as the point is created, the data entry form will open. ⑦

You can modify the data using the various widgets provided by the form.



For detailed information on initiating edit mode for a custom form, refer to the Editing Records Through a QGIS Form.documentation.

REQUIRED fields

  • id: primary key (auto-incrementing)
  • Soil Plot Type: TEXT (codelist)
  • Begin Lifespan version: DATETIME (default: today)

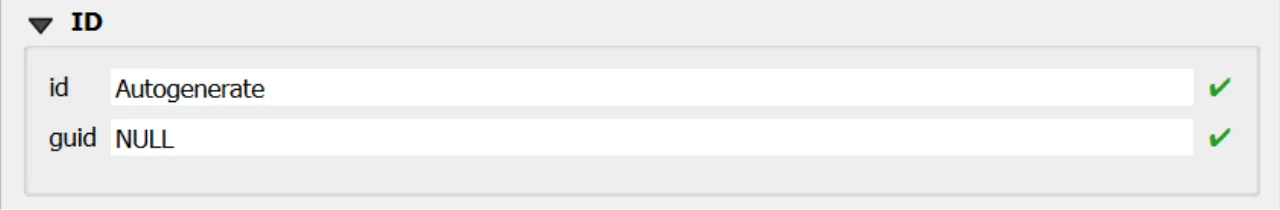

ID Group

Fig.1



Fields

  • id - Primary AUTO_INCREMENT INTEGER PRIMARY KEY; it’s the required identifier for GeoPackage tables and is assigned automatically on insert.

  • guid - Global identifier in UUID format, stored as text. The field is optional. It’s automatically managed via triggers.

Important

On opening, the ID group is collapsed: there is no need for manual editing, as both fields are system‑managed (the id by the SQLite engine and the guid by triggers), reducing errors and ensuring identifier consistency over time.

INSPIRE ID Group

Fig.1



An INSPIRE ID is the external unique identifier assigned to each spatial object in INSPIRE datasets; it ensures uniqueness and persistence and allows external applications to reliably reference the same object over time. The identifier must not be changed during the object’s life cycle; it can also be published as a URI to facilitate web-based referencing. 1

Fields

  • Local id — Local identifier assigned by the data provider; unique within its namespace.
  • Namespace — Namespace that uniquely identifies the data source/domain of the spatial object.
  • Version id — Identifier of the specific version of the object; optional (voidable) and used to distinguish different versions of the same object.

Important

These fields are not mandatory, but filling them out is strongly recommended: they help uniquely identify the record in forms and across data exchanges.
In particular, localid + namespace form a stable identifier; versionid helps track changes over time.

Constraints

  • CHECK: beginlifespanversion <= endlifespanversion (BEFORE INSERT).
  • Codelist: soilplottype ∈ codelist(id) where collection='SoilPlotTypeValue' (BEFORE INSERT/UPDATE).
  • GUID immutability: guid auto-generated on INSERT; updates to guid aborted.
  • Versioning: on UPDATE, beginlifespanversion refreshed if endlifespanversion is NULL/future; update aborted if endlifespanversion is past.

Attribute Reference

For an overview of the attributes used in the custom form, refer to the soilsite table documentation. It provides the key definitions and data types needed to correctly interpret the fields and configure the form within the data model.

Save

For a more comprehensive overview of form‑saving workflows, refer to the detailed documentation in Saving Edits in QGIS Forms.

  1. Creating INSPIRE external unique object identifiers in the scope of the END reporting ↩
